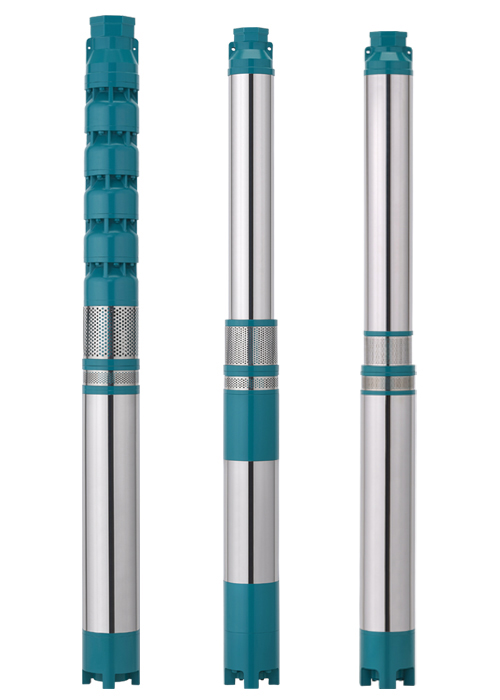

V5 Borewell Submersible Pump Set

KW/H.P. Range 2.20 to 7.50 KW / 3.00 to10.00 H.P. Three Phase
Maximum Stage 38 Stage
Maximum Discharge 880 LPM
Maximum Head Upto 382 Meter
Operating Voltage Range 300 to 440 Three Phase
Rated Voltage/Frequency 415 Volt / 50 Hz
Standard Voltage Range -15% +6% of Rated Volt
Maximum Temp.of Liquid 33° C
Rotor EC Grade Copper
Winding EC Grade Copper - Three Coated Polywrap
Motor Body Stainless Steel
Motor Shaft S.S. 410
Housing Base & Con. Pic Cast Iron
Pump Body Stainless Steel
Pump Shaft S.S. 410
Bowl GF 30 Noryl (Virgin) & Cast Iron / S.S.304
Impeller GF 30 Noryl (Virgin) / S.S.410l
Suction & Outlet Cast Iron
Thrust Bearing Carbon/S.S. Segments & Loose Segments
Bushing LTB-4
  • Proven & reliable design for critical conditions.
  • High pumping efficiency for reduced running costs.
  • State of the art design delivers optimum performance and reliability in the toughest conditions.
  • Easy assemble, dismantle. easily service pump & rewindable motor.
  • Suction screen and coupling are made of stainless steel.
  • Light weight and compact.
  • Farms irrigation.
  • Larger industries.
  • Civil water supply.
  • Domestic water supply.
  • Complexes and bungalows water supply.
  • Gardens and fountains.
  • Hotels.
