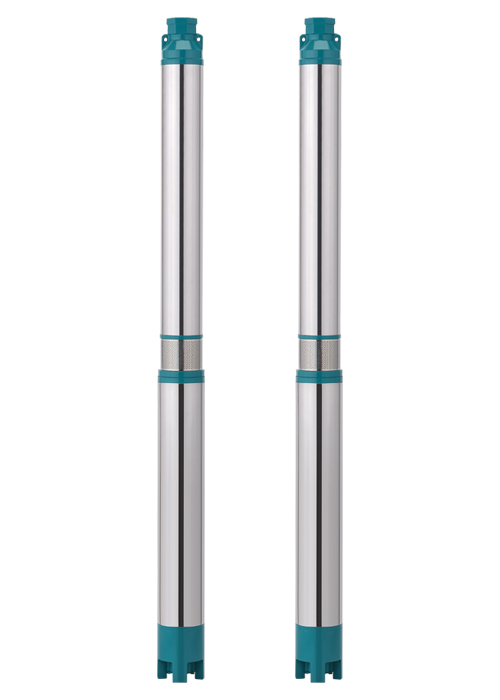

V3 Borewell Submersible Pump Set

KW/H.P. Range 0.37 to 1.10 KW / 0.50 to 1.50 H.P. Single Phase
Maximum Stage 25 Stage
Maximum Discharge 110 LPM
Maximum Head Upto 110 Meter
Operating Voltage Range 160 to 240 Single Phase
Rated Voltage/Frequency 220 Volt / 50 Hz
Standard Voltage Range -15% +6% of Rated Volt
Maximum Temp.of Liquid 33° C
Stator CRNO / CRC
Rotor EC Grade Copper
Winding EC Grade Copper - Three Coated Polywrap
Motor Body Stainless Steel
Motor Shaft S.S. 410
Housing & Base Cast Iron
Pump Body Stainless Steel
Pump Shaft S.S. 410
Bowl Noryl
Impeller Noryl
Suction & Outlet Cast Iron
Thrust Bearing Carbon/S.S. Segments
Bushing LTB-4
  • Proven & reliable design for critical conditions.
  • Standard 2 pole, speed 2900 rpm motor.
  • High operating efficiency.
  • Water cooled rewindable motor can be easily dismantled and repaired can handle up thrust loads.
  • Unique single piece stainless steel motor body design more strength. designed for wide voltage fluctuations.
  • Lip seal and sand guard to prevent ingress of impurities into the motor.
  • Houses.
  • Nurseries.
  • Small industries.
  • Small farms.
  • Hotels.
  • Gardens and fountains.
For Technical Details Download PDF
